TDS V20 Shredders

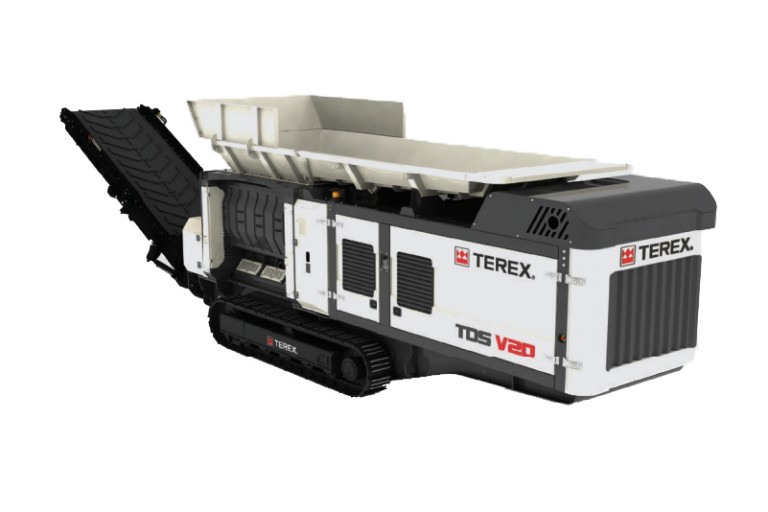

The Terex TDS V20 medium speed shredder is a revolution in mobile shredding. The double shaft shredder chamber has been developed by Vecoplan specifically for the mobile industry. It benefits from independent hydrostatic drive and a product sizing screen. This screen system which is available in different sizes, comes complete with an intelligent protection system, allowing a desired particle size to be produced, whilst still being able to cope with foreign objects.

The TDS V20’s ability to produce a controlled product size in one pass is of huge benefit to the operator saving them both time and fuel. However, its versatility means it can be used as a primary or secondary shredder if the need arises. The highly user friendly control interface, complete with pre-installed programs allows the TDS V20 to shred difficult materials such as wood waste, green waste, domestic and industrial waste and is particularly suited to producing SRF.


Key Specifications
Weight 37,000Kg (81,400lbs) – (dependent on options)
Length 13630mm (44’ 8”) (product belt @ 35°)
Width 2800mm (9’ 2”)
Feed Height 3400mm (11’ 2’’)
Discharge Height 3900mm (12’ 10”) – 1700mm (5’ 7”)
Engine Scania DC13 Tier 4 Final (368kW / 493HP) (U.S. and EU.)
Type of shredder Twin shaft medium speed
Tilting feeder capacity 8m3
