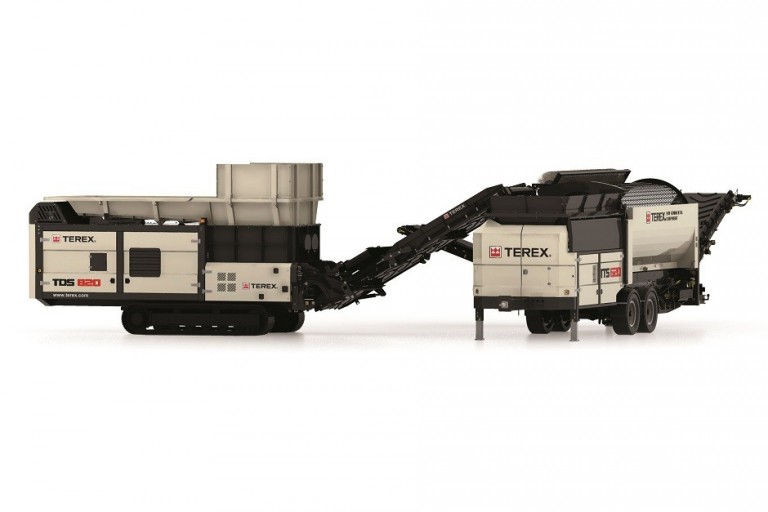

The Terex TDS820 slow speed shredder is purpose-built to process all types of material, whether it is domestic, industrial or bulky solid waste. This industrial shredder features customizable shredding programs that give operators the opportunity to configure the machine to their specific requirements, reduce material wrapping and maximize production. Designed with independently-driven shafts, this double-shaft slow speed shredder is assured to give machine operators excellent performance in even the most challenging of applications.

The TDS820 includes a hydrostatic drive that provides increased protection against contamination and allows for bi-directional shredding as well. Its 2-meter long shafts are manufactured with a fully-welded tooth configuration, which makes for massive throughput and excellent material reduction. Its independent gearboxes enable each shaft to be run separately to reduce material wrappage for effective shredding operations.

Specs

Key Specifications
Transport Weight 27,500Kg (60,600lbs) (dependent on options)
Type of shredder Twin shaft slow speed
Engine Scania DC13 331kW (440HP) Tier 4 Final (USA & EU)
Torque per shaft 100 000Nm
Tilting feeder capacity 7m3
