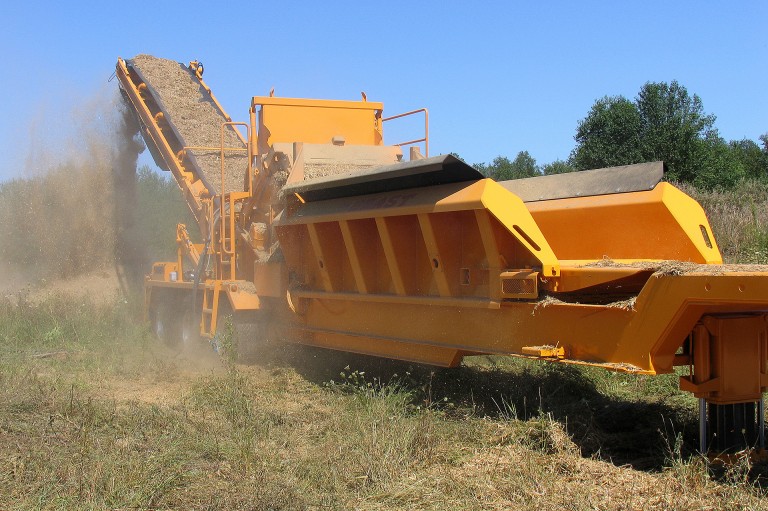

The Beast® Model 3680XP Electric
The most popular horizontal grinder in The Beast® series becomes a zero-emission, alternative energy solution thanks to electric motor options from 400 to 800 horsepower. Single or dual WEG electric motors, along with a 50-horsepower electric pump drive motor and soft-start panel for the mains make The Beast Model 3680XP Electric a turn-key machine for municipalities, tree services, logging operations, recycling organizations and sawmills. With a 35-inch by 60-inch opening, the Model 3680XP is in a class all its own when it comes to production and reliability, producing a truly amazing range of end-products from waste wood, shingles, construction materials, storm damage debris and more.
The heart of the Model 3680XP is its patented 60-tooth cuttermill. Whereas most horizontal grinders have a mill that turns up, The Beast mill turns down, processing material at the base as opposed to fighting against gravity at the top. The mill design itself processes material with more of a cutting action, delivering greater machine efficiency while producing a better end-product.
|Discharge conveyor||914.4 x 121.9 cm|
|Infeed conveyor||609.6 x 152.4 cm|
|Machine capacity||88.9 cm|
|Machine opening||88.9 x 152.4 cm|
