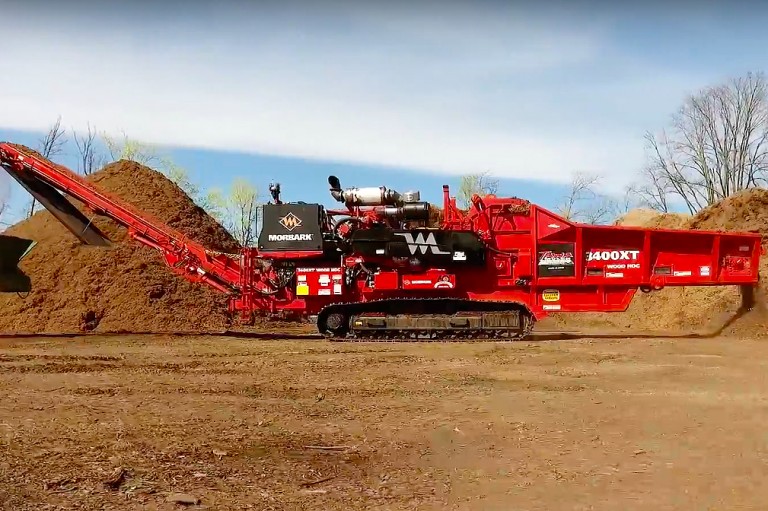

Morbark, Inc. - 3400XT Horizontal Grinders

Listening closely to customer feedback while developing the design for the 3400X Wood Hog, Morbark provides the features customers want and the versatility they need, while staying true to our proven technology. One of the most important features of the 3400X is that it can be made as narrow as 8'4″ (2.53 m), making it within the legal transport width in any country, no matter what engine is used. This model accommodates engines from 520 to 800 horsepower (388 to 596 kW), so it is ideal for a broad range of applications in a wide variety of markets worldwide. Like all of Morbark Wood Hog models, the 3400X also is available with electric power. The size of the 3400X allows the same model, using a broad range of engines, to be configured for multiple applications and global markets without additional design considerations.

Specs

Key Specifications
Gross weight wheeled (approx.) 59,720 lbs. (27,088 kg)
Axle weight (approx.) 40,460 lbs. (18,352 kg)
Tongue weight (Approx.) 19,260 lbs. (8,736 kg)
Gross weight tracked (approx.) 71,900 lbs (32,613 kg)
Horsepower 520 to 800 HP (388 to 596 kW)
Infeed opening 57 ½” x 38″ (145 cm x 96.5 cm)
