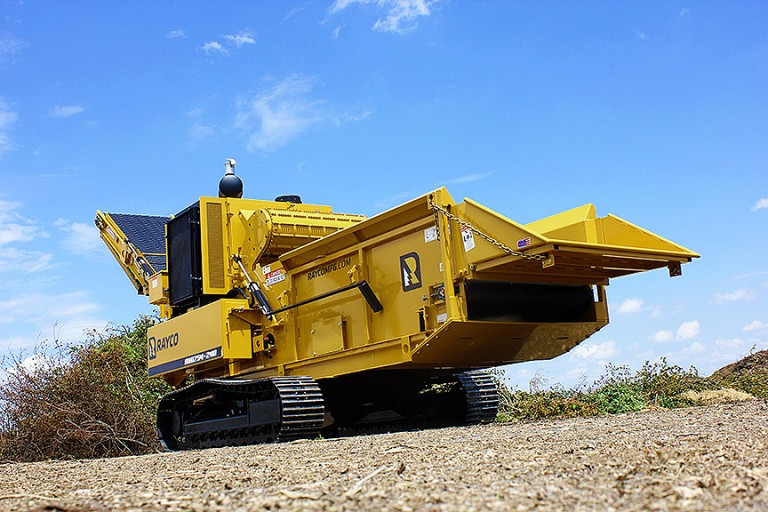

Rayco Manufacturing, Inc. - RH1754-240 Horizontal Grinders

Horizontal grinders don’t have to break the bank. The RH1754 is designed to be a productive horizontal grinder priced within the reach of the small contractor. With low operating costs and versatility to process a wide range of materials, Rayco’s RH1754 is the economical solution for reducing green waste, pallets, lumber scraps, etc and making high quality mulch. A variety of tooth and screen options allow operators to tailor the end product to achieve their result.

Despite its compact size, the RH1754 is outfitted with the same features found on larger grinders. A wide infeed opening accepts pallets and bulky material. Easily removable debris screens and reversing fans keep the radiator clear and extend service intervals. A magnetic head pulley on the discharge conveyor sorts out nails and light metals. And the screens can be changed in minutes to minimize set-up time. The towable version is light enough to be easily transported from on job to the next. For those that want the ultimate in mobility, the RH1754 is available on a heavy duty steel track undercarriage.


Key Specifications
Weight 17,500 lb | 7,937.9 kg
Engine 240 hp Cummins | 179 kW Cummins
Discharge Conveyor Height 12’ 4” | 375.9 cm
Infeed Conveyor Length 98” | 248.9 cm
In-Feed Opening 17” x 54” | 43.2 cm x 137.2 cm
