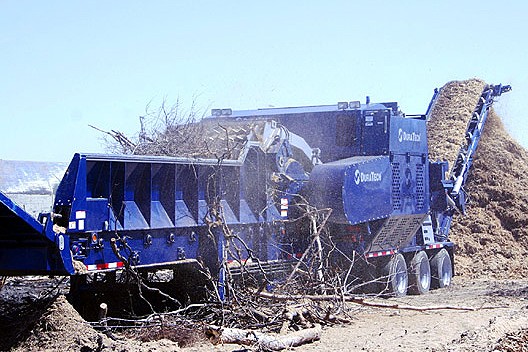

DuraTech Industries - Model 9564 Horizontal Grinders

The Model 9564 Horizontal Grinder is the newest member to the DuraTech Line up of industrial grinders. It comes with the CAT C27 Tier II Diesel engine that puts out 1050 HP (782.9 kw) The HPTO wet clutch transfers power to the 64 inch wide 12,100 lb( 5488.5 kg) hammermill. The hammermill is fed by a self governing floor apron and feed roller through a 60”(152.4cm) wide x 40” (101.6cm) high feed opening. The high capacity 315 cu. Ft. (11.66 cu. yd.) (8.91cu.m.) hopper will handle the largest trees and stumps.


Key Specifications
Total Weight 91,500 lbs. (41,503.7 kg)
Screen Area 4,340 sq. in. (27,99.944 sq. cm)
Stacking conveyor length 30.5 ft. (9.3 m)
Stacking conveyor width 48 in. (121.9 cm)

Company Info

P.O. Box 1940
Jamestown, ND
US, 58401
