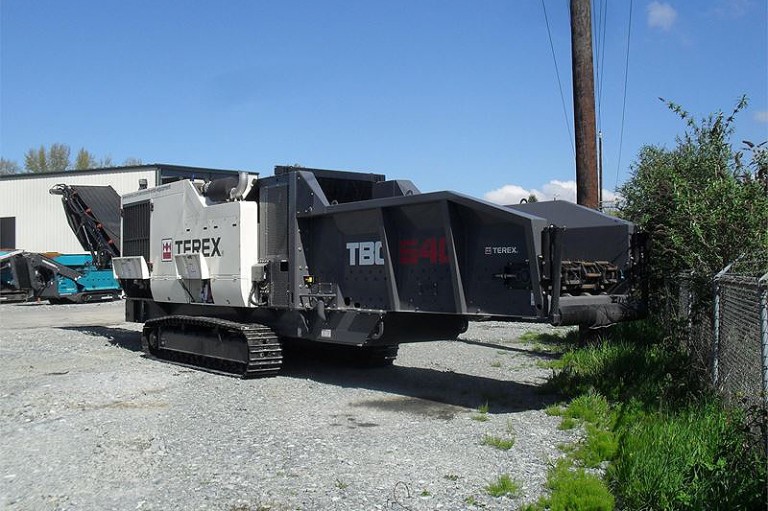

The TBG 640T is a high-speed horizontal grinder designed for maximum production output and minimum operator downtime. It processes applications such as tree stumps, green waste, wood waste, logs, land clearing debris and C&D waste with a strong tolerance for high contamination. The TBG 640 horizontal grinder is designed for both primary grinding and regrinding duties and is operated by simple and intelligent control systems to ensure full operator control.
Available as a tracked or wheeled model, the tracked grinder features a 41” high x 63” wide (1,041 mm x 1,600 mm) infeed opening and a 40” diameter x 189” length (1,016 mm x 4800 mm) feed roll. With convenient service access, the machine operator can conduct routine machine maintenance at a moment’s notice. Powered by either a 755 hp or 765 hp Caterpillar diesel engine, the TBG 640T’s advanced engine load management system maximizes production and fuel usage.
|In-Feed Opening||41” high x 63” wide (1,041 mm x 1,600 mm)|
|Rotor Dimensions||Upturn; 33" diameter x 63" wide (863 mm x 1,625 mm)|
|Feed Roll||40” diameter x 189” length (1,016 mm x 4800 mm)|
|Engine||CAT C-18;755 HP (563 kW), diesel|
