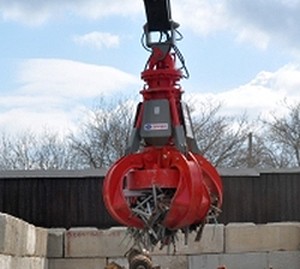

The MG Series Grapple with Magnet is designed to work with cranes that range in weight from 16 to 50 tons. The grapples have 4 or 5 fingers with three different finger styles, depending on the application of the grapple. The MG series are for extreme scrap operations and have 1/2 to 2 cubic yard capacities with up to 50" 230VDC diameter scrap magnets. magnets are bolted into the frame allowing the user to easily remove should they require maitenance. The attachment can be used with or without the magnet. Hydraulic cylinders are oversized and fully guarded and protected by steel enclosures. The weight of the MG ranges between 3480 to 7200 lbs., depending on the finger type. Optional 360 degree internal or external hydrauilc rotators are available.
|Model: MGL/5-60 (5 tine/finger)||.75 cu. yd. cap., 3480-7200 lbs|
|Model: MG/4-80 (4 tine/finger)||1 cu. yd. cap., 3480-7200 lbs|
|Model: MG/4-100 (4 tine/finger)||1.3 cu. yd. cap., 3480-7200 lbs|
|Model: MG/4-150 (4 tine/finger)||2 cu. yd. cap., 3480-7200 lbs|
