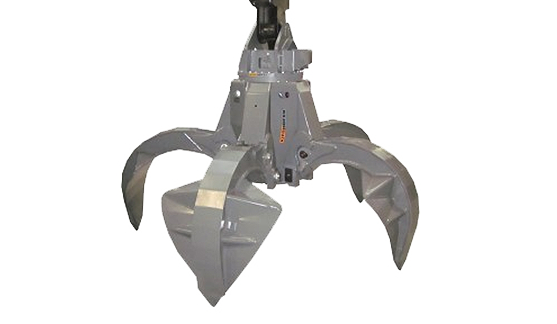

Kinshofer North America - P40VHD Orange Peel Grapples

P40VHD with three, four or five tines for excavators with 26 to 40t / 57200 to 88000 lbs operating weight and a load capacity of 6000 kg / 13200 lbs with three tines and 10000 kg / 22000 lbs with four or five tines at openings of 2200 up to 2835 mm / 86.61 up to 111.61 in at different volumes. The package includes: grab, integrated rotation, head plate, hose guard, bolt-on bottom plate with welded lifting eye, non-return valve.


Key specifications
Tines 4-5
Load Capacity 10000/22000 lbs
Volume 600-800 L
Width (Closed) 1430-1570 mm
