Liebherr Construction Equipment Co.

LH 26 M Litronic

Material Handler


LH 26 M Litronic
Liebherr

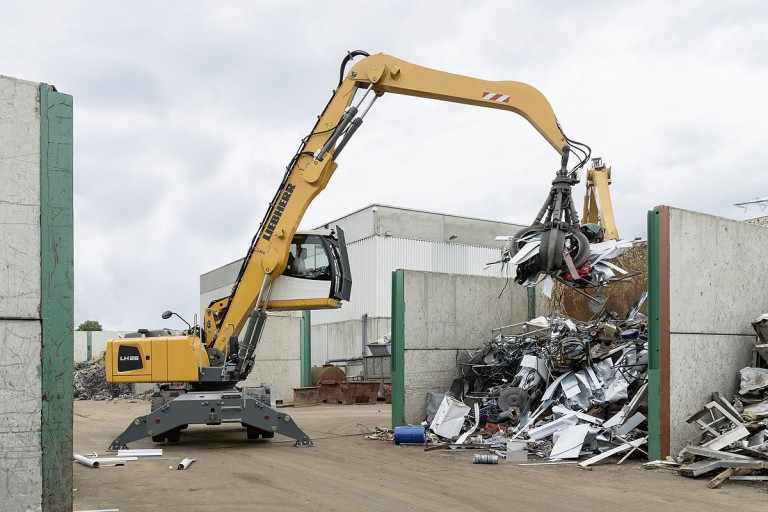

The LH 26 M Litronic is equipped with a robust undercarriage that in comparison to the LH 24 M is also wider. This results in increased loads and greater reaches whilst maintaining excellent stability. Utilizing state-of-the-art engine and hydraulic technology developed by Liebherr, the main focus is on fuel efficiency whilst concurrently increasing the handling capacity. This achievement is moreover heightened by the wide choice of attachment combinations, which have been optimally coordinated for the respective applications.

View Profile

Specs

Key specifications
Operating weight 55,800 - 57,300 lb
Engine output 110 kW/148 HP (SAE J1349)
Stage Tier 3
Multi-tine grapple capacity 0.52 - 0.78 yd³
Shells for loose material capacity 1.31 - 2.35 yd³
Sorting grapple capacity 0.65 - 0.98 yd³
Wood grapple capacity 1,240 - 2,325 in²
