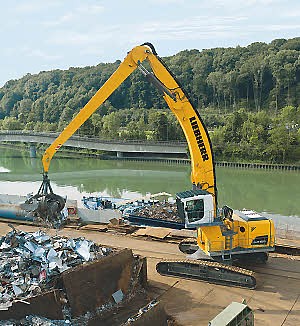

The LH 120 C Litronic material handler has been specially developed for handling dry bulk material. It combines an innovative, state-of-the-art concept with unusually high performance. Its high-tech equipment includes the Positive Control multi-circuit hydraulic system. Controlled by the Liebherr electronics and system software, it allows fast and fluid working motions and efficient energy utilisation. The modular construction of both the basic machine and the equipment offers ideal solutions for any operational requirements. The LH 120 C Litronic is available in a high rise version for material handling at sea ports, and a standard version without extra tower height which is ideal for inland ports. Various raised cab or undercarriage concepts can be chosen for different uses. These custom adaptations for special requirements guarantee excellent handling performance and efficient operation.
|Operating weight||297,600 - 317,700 lb|
|Engine output||400 kW/536 PS (SAE J1349)|
|Multi-tine grapple capacity||2.22 - 3.92 yd³|
|Shells for loose material capacity||3.01 - 7.85 yd³|
|Wood grapple capacity||2.22 - 4.19 yd²|
