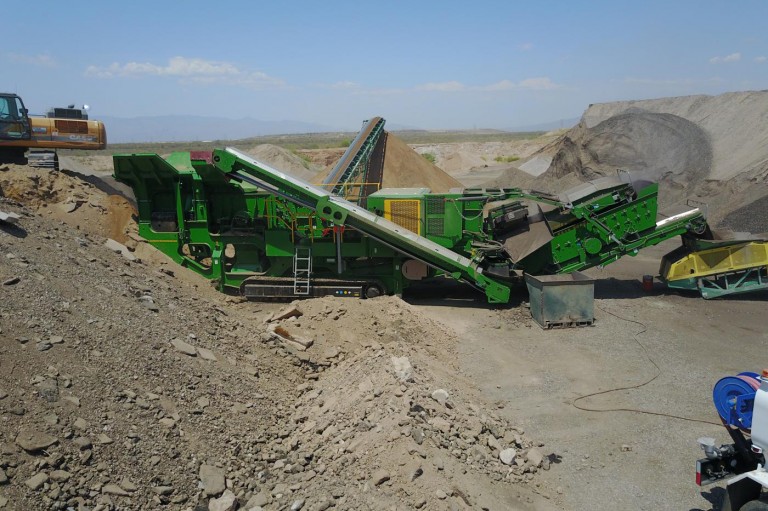

McCloskey International - I54R V3 Crushing Plants

The McCloskey I54 Impactor brings high quality and high production capacity to mobile impactor applications. The I54 is built around a 47" x 53.5" four bar impactor chamber with a 37" x 53.5" feed opening. An independently vibrating 53.3" x 69" double-deck pre-screen removes the majority of the fines in advance of the crushing chamber, increasing capacity and reducing wear. Available with a roll-in bogie, the I54 is easily transported and has a minimal setup time with the user friendly control panel, maximizing production time.


Key Specifications
Engine 510 HP (380 kW)
Impactor 1200mm (47.2") x 1335mm (52.6")
Feed Opening 1360mm (48") x 950mm (37")
Crusher Speed 530 - 640 rpm (33-40 m/sec. rotor speed)
Prescreen Dimensions 1204mm (47.4") x 2360mm (7'-8.8")
Hopper Volume 6.8m³ (8.9yd³)
Stockpile Height Main Conveyor 3743mm (12'-3")
