Jaw crushing unit

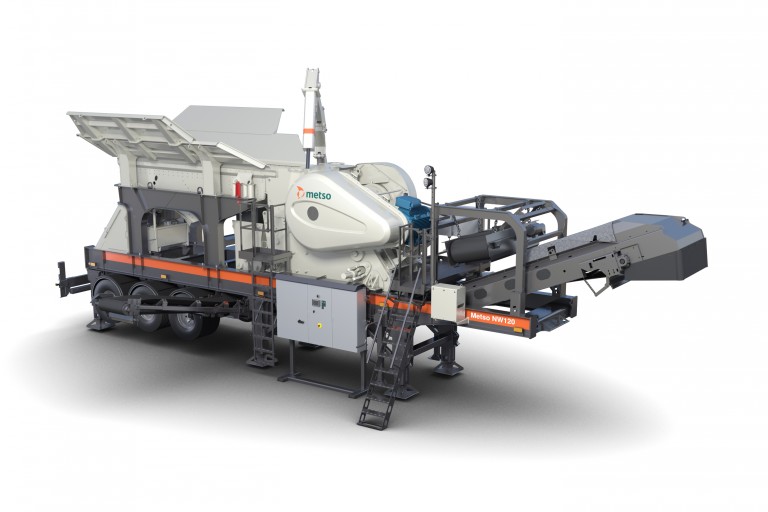

Metso NW120™ primary jaw crushing unit features Nordberg® C120™ jaw crusher, with a proven track record in the toughest aggregates applications. The unit can be equipped either with on-board main and side conveyors; or connected to the plant conveyor system directly.
Metso NW Rapid portable jaw crushing units with a vibrating feeder are used for primary crushing. Material is fed on to the feeder by excavator, wheel loader or by dump truck. Two-stage scalping section removes the fines wich can be guided to main or side conveyor. Output material size is controlled by crusher setting. The Nordberg C120 crusher has an electric drive to ensure trouble free and economical operation.
|Feed opening||1 200 x 870 mm (47 x 34”)|
|Crusher drive||160 kW (215 hp)|
|Weight||51 000 kg (112 450 lbs)|
