CRH1313R

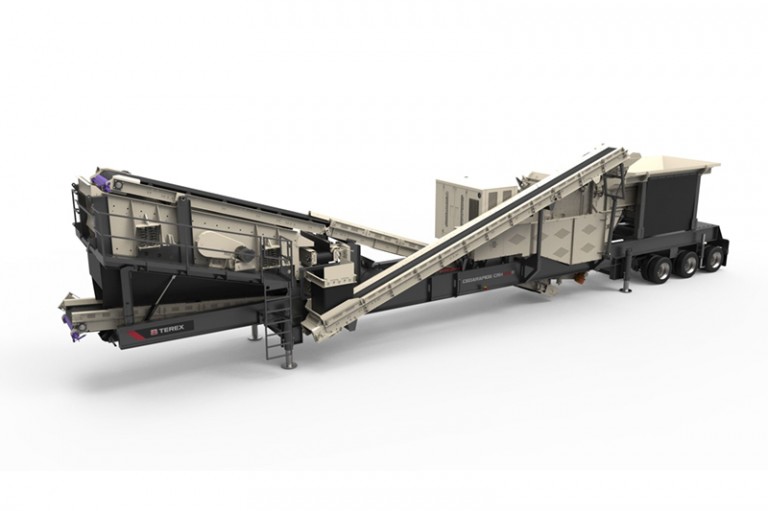

The Cedarapids® CRH1313R delivers big production and has the versatility to handle rock crushing, concrete recycling, and asphalt recycling. The highly mobile plant is a complete stand-alone closed-circuit unit with three product capability. The plant features a high production Cedarapids IP1313 impactor with a 3 or 4 bar 50" (1270 mm) rotor powered by a Tier 4, 450 hp (335 kW) diesel engine, direct drive to crusher, and 200 hp (150 kW) generator. Uptime is maximized with a heavy-duty undercrusher pan feeder that protects the conveyor belt from damage by absorbing the high velocity discharge from the crusher. More capacity is possible because of the 5'x16' (1515 x 4875mm) patent-pending dual-slope 2-deck screen which handles heavier loads. In addition, the capability to return both screen deck products to the crusher maximizes production. A rugged 48" x 16' (1220 x 4875 mm) high-stroke Cedarapids "Advantage" feeder with 60" (1525 mm) grizzly bar or optional stepped tine style grizzly section feeds the impactor. The new CRH1313R portable impactor/screen plant is simple to operate, quick to set up, and easy to transport.

VIEW FULL PROFILE

Specs

Key Specifications
Weight 134,900 lbs
Transport Dimensions 80'11"x11'11"x13'5" (LxWxH)
Working Dimensions 77'9"x11'11"x21'2" (LxWxH)
Axles 3 or 4 Axle
Capacity 150-300 tph
