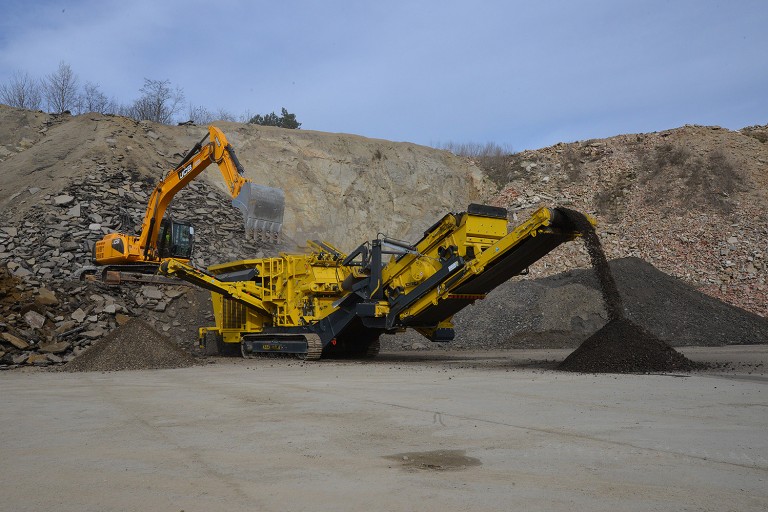

This machine weighs a mere 25 tonnes (without options) and its small transport dimensions and capacity of 100 to 200 tonnes per hour make it eminently suitable for deployment in any number of situations. The end product is 0/40 (X) mm, which can be certified. The machine has been executed with a vibrating feed unit with a plate deck for pre-screening. The right-hand side conveyor is optional.
|Transport weight||± 25,000 kg / < 30,000 kg with afterscreen & options|
|Vibrating feeder with pre screen, total length/width||3.700 x 920 mm|
|Length pre screen||1,200 mm|
|Inlet opening||770 x 960 mm|
|Rotor width/diameter||920, 1060 mm|
|Rotor speed||560-640 rpm, 31 - 36 m/s|
|Capacity||up to 250 tons / hour|
