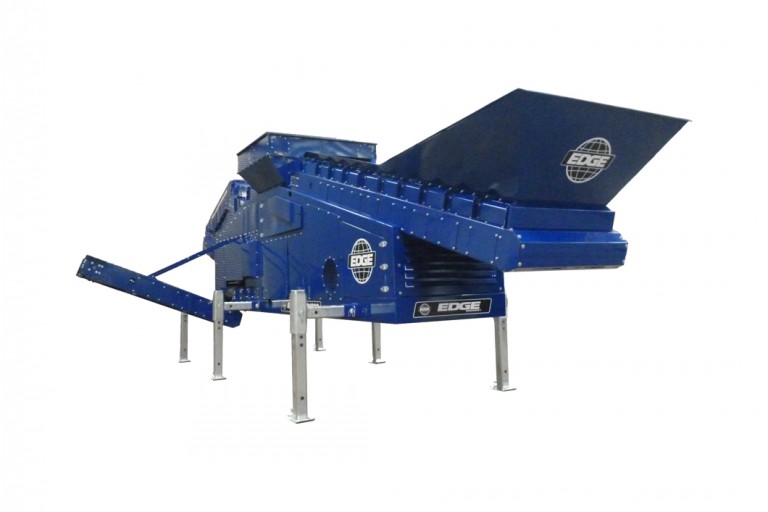

Edge Innovate - MC1200 Stationary Screens

Reduce landfill cost and create new revenue streams with the EDGE MC1200. Designed to separate unwanted material from valuable commodities, the EDGE material classifier utilizes the latest advancement in “light V heavy” material separation technology. Incorporating a four stage separation process; the EDGE MC1200 density separator removes impurities from aggregates, construction and demolition waste and other commingled waste streams.

The use of controlled air as a separation medium provides extreme versatility and greater flexibility to that of mechanical separation techniques. Easy adjustable parameters such as fan speed and feed conveyor belt speed allow operators the ability to customize the unit for optimum production in a wide range of applications. The MC1200s’ large capacity hopper coupled with its 1200mm (48”) wide feeder conveyor provides an even spread of material for efficient separation. The totally enclosed design helps control air flow and minimizes air depressurization whilst minimizing dust creation with reduced spillage.

Specs

Key Specifications: 2 models (Static and Tracked)
Weight 14.5 tonne (15.9 ust) and 17 tonne (18.4 ust)
Transport Width 2.6 m (8'8") and 2.7 m (8'10")
Transport Length 13 m (42'8") and 12 m (39'5")
Transport Height 3.35 m (11') and 3.3 m (11')
Working Width 5.7 m (18'8") and 6.63 m (21'9")
Working Length 13 m (42'8") and 12 m (39'4")
Working Height 4.15 m (13'8") and 3.8 m (12'6")

Company Info

30 Farlough Road
Dungannon, Co. Tyrone,
IE, BT71 4DT

Website:
edgeinnovate.com

Phone number:
44 (0) 2887 747244
