D04HPX

Grapples


D04HPX

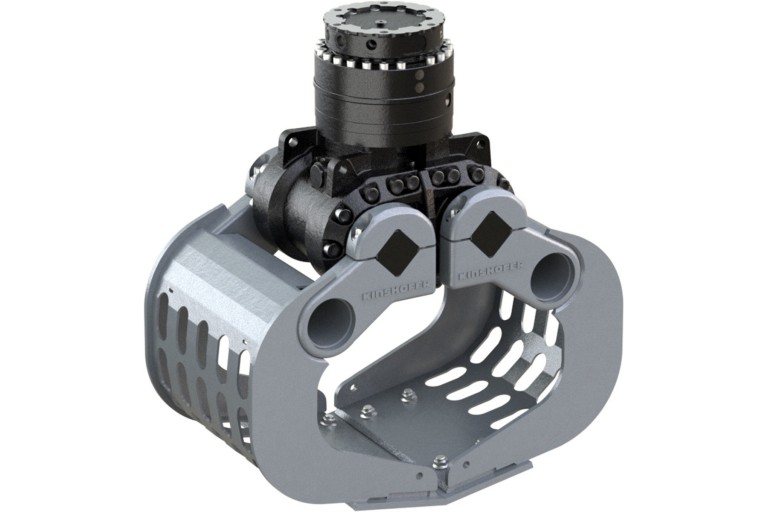

The D04HPX is available for excavators with 2t to 4t / 4400 lbs to 8800 lbs in volume 60 litres / 0.08 c.y. and a height of 812 mm / 31.97 in as package including: selector grab, cutting edges, HPXdrive, 10t-rotator and non-return valve.

VIEW FULL PROFILE

Specs

Key Specifications
Weight 280 kg (616 lbs.)
Load Capacity (form locking) 1500 kg / 3300 lbs
Load Capacity (friction locking) 1000 kg (2200 lbs)
Closing Force 18 kN (3960 lbf)
Operating Weight 2 - 4 t (4400 - 8800 lbs)
