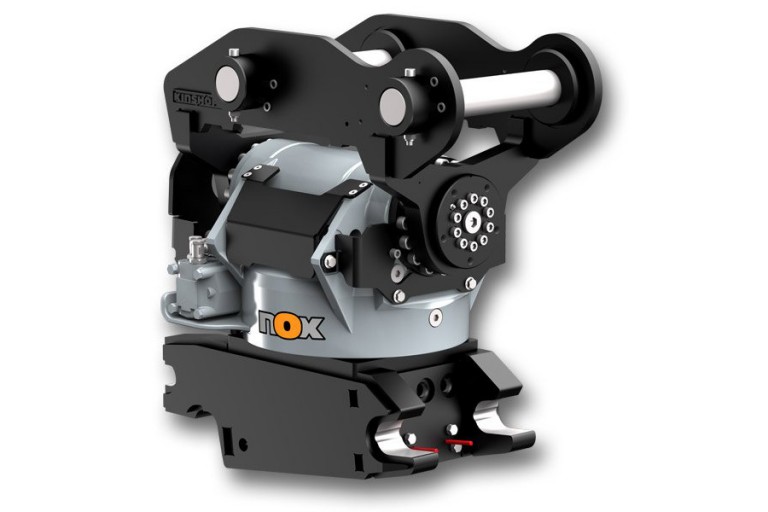

Kinshofer North America - TR14NOX Tiltrotators

TR14NOX for excavators with 10 to 14t / 22000 to 30900 lbs operating weight, featuring a tilting angle of 2 x 50° at a tilting torque of 26000 Nm / 19175 ft.lbs constant with 8.5 rotations per minute. Tiltrotator, control system, upper suspension or coupling and lower coupler or quick change are included in the standard package.

Specs

Key Specifications
Machine size 10 - 14 tons / 22000 - 30800 lbs
Breaking force max. (ISO) 110 kN / 24200 lbf
Bucket width max. 1600 mm / 63 in
Weight 440 kg / 968 lbs
