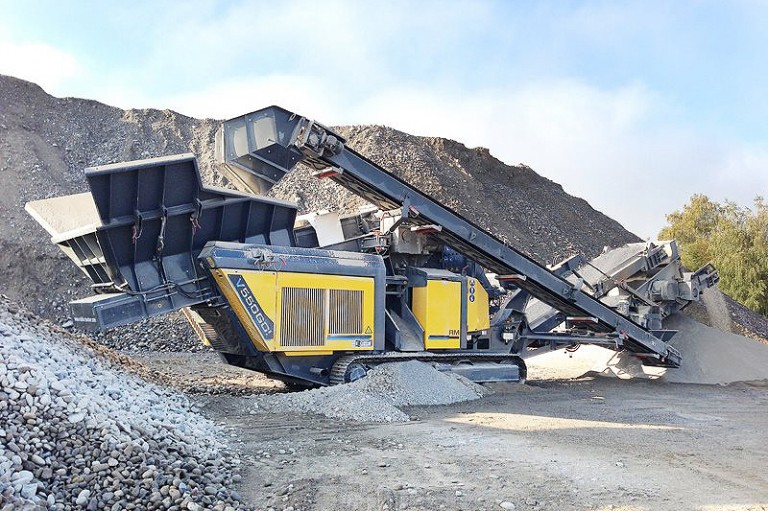

Rubble Master - RM V550GO! Track Mounted Jaw Crushers

The RM V550GO! unites the vortex crushing principle and all the proven benefits of the RM GO! principle, thus achieving a high degree of crushing efficiency which is second to none while maintaining maximum flexibility. Expanding the mobile crusher with RM add-ons such as the RM CS4800 compact screen turns it into a fully mobile, compact sand and grit mill.

The superior pulverisation technology processes even very large feed material efficiently, often saving users an intermediate pre-crushing stage. Residual and oversize grain material can thus be turned into value grain in a single pass. Combined with the add-on screen deck and RM CS4800 compact screen, three value grains can be produced.

Features & Benefits

100% mobility

The transport as well the start up and dismounting are fast and easy. The machine is ready for operation on the jobsite within minutes.

Belt feeder with feeding hopper

The low loading edge and the feeding hopper volume of 5.5 m³ support the feeding process. The variable speed of the belt feeder gives you maximum throughput performance.

Metal detector

The efficient metal detector prevents metal from going into the crushing chamber.

RM CS4800 Screen

Adding an RM CS4800 screen makes a compact and powerful sand and gravel plant for 3 defined fractions.

Innovative drive concept

Thanks to the typical RM drive concept fuel consumption is kept very low, thus reducing running costs.

Safe ground-based service

The engine which is mounted beneath the vibro feeder can be accessed from three sides and thus enables you to carry out maintenance and servicing safely and efficiently from the ground.

RM MS100GO! mesh deck screen

The RM MS100GO! is mounted on the RM V550GO! using a subframe and stands out through high precision when separating the screened materials.

Specs

Key Specifications
Throughput Up to 200 t/h depending on material
Inlet opening 950 x 480 mm
Weight 33,000 kg
Crusher unit Crusher with 2+2 or 4 hammers, rotor speed adjustable between 39.5 and 48 m/s
Power unit John Deere diesel engine, 6 cylinders 280 kW at 2000 rpm
