​TOMRA launches X-TRACT X6 Fines, capable of sorting smallest metal fractions

X-TRACT X6 FINES uses enhanced X-ray technology to detect and sort metal grains half the size of what was previously possible

TOMRA at Aluminum USA 2019 where X-TRACT X6 FINES was introduced to the industry.
TOMRA at Aluminum USA 2019 where X-TRACT X6 FINES was introduced to the industry.

TOMRA Sorting Recycling has launched the new X-TRACT X6 FINES for high-purity sorting of mixed non-ferrous metal fractions. The technology was unveiled Aluminum USA 2019, the biannual industry event staged at the Music City Center Convention Center in Nashville, Tennessee.

X-TRACT X6 FINES detects and sorts small metal grains of almost half the size of what was previously sortable. This breakthrough capability has been achieved by developing TOMRA's exclusive and field-proven high-speed X-ray transmission (XRT) technology, which sorts materials according to differences in their density. Broad-band radiation penetrates the materials in the sorting line to obtain spectral absorption, which is measured by the X-ray camera. The process identifies the atomic density of the materials regardless of their thickness.

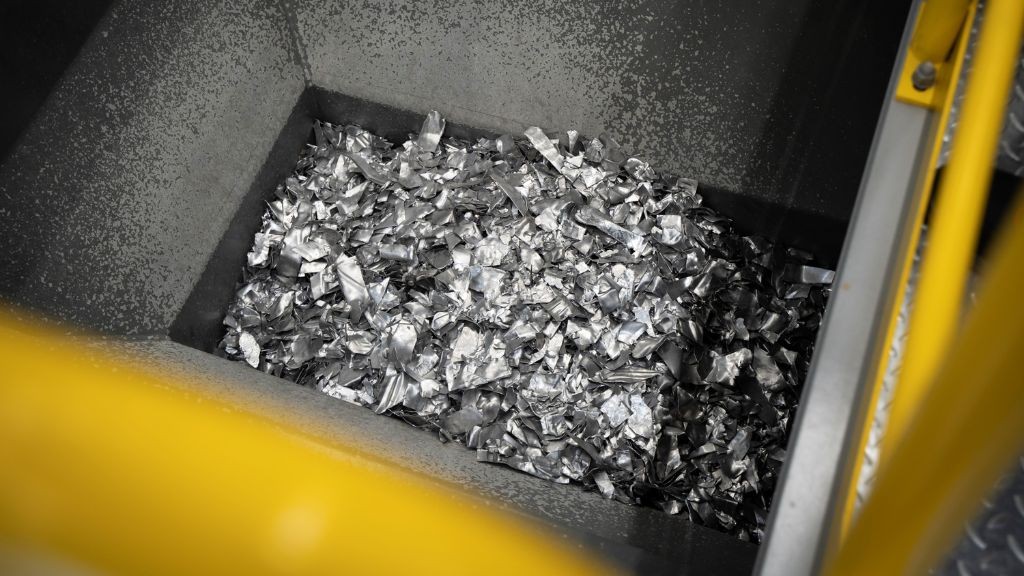

Aluminum fines. Increasing the sensitivity of the high-resolution X-ray camera has made it possible to detect and sort grain sizes as small as 0.2 in, thus measurably reducing product losses.

"TOMRA's new X-TRACT X6 FINES technology is unrivalled with regard to the size of material detected and sorted," said Carlos Manchado Atienza, Regional Director Americas at TOMRA Sorting Recycling. "While retaining many of the familiar controls of the field-proven X-TRACT technology, the X-ray sorting technology of X-TRACT X6 FINES reaches new levels of sophistication, which enables sorting operations to unlock even more value from secondary materials."

According to TOMRA, increasing the sensitivity of the high-resolution X-ray camera has made it possible to detect and sort grain sizes as small as 0.2 in, thus measurably reducing product losses. Plus, extensive trials of the X-TRACT X6 FINES in high-throughput applications have proven the machine's ability to consistently attain unrivalled purity levels of 98-99%.

Similar to X-TRACT, X-TRACT X6 FINES is equipped with TOMRA's Duoline® Dual ENERGY Technology. This employs two independent devices with different spectral sensitivities, so that materials are sorted regardless of the material's thickness. By detecting and prioritizing between single-object and area processing, Duoline recognizes differences in objects overlapping on the sorting belt, a significant advantage when lines are running higher throughputs.

Whereas previous X-TRACT models sorted materials into high- and low-density fractions, the new X-TRACT X6 FINES features multiple density channels. This allows a greater number of classes for separating materials according to density, achieving greater sorting precision even with mixed metals and small grain sizes.
