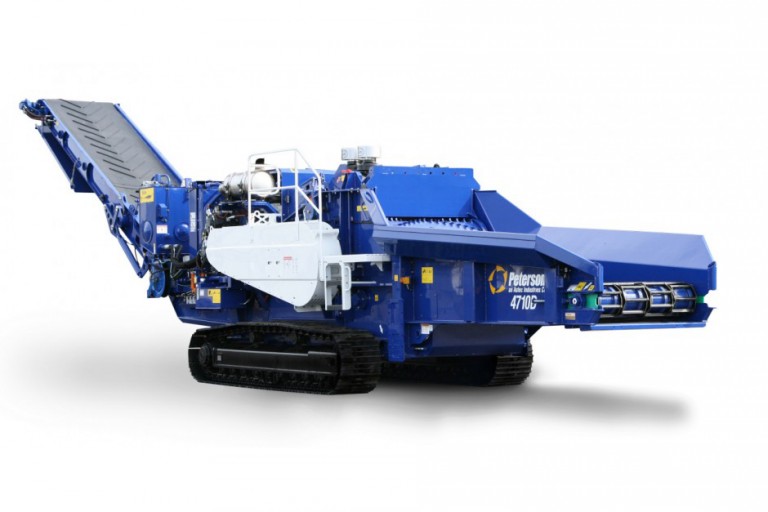

4710D Horizontal Grinders

The 4710D is a track mounted horizontal grinder designed for high-volume producers with very demanding end-product specifications. Boasting 18 inches (46 cm) of ground clearance—this model is particularly suited for land clearing operations or other applications where mobility and frequent moving is desired. Track mounting also reduces material handling costs in conventional recycling yards as well.

Specs

Key Specifications
Machine Weight 79,000 lbs (35 834 kg)
Ground Clearance 18" (46 cm)
Engine Caterpillar C18 Tier IV, 755 hp (563 kW) @ 2100 rpm
Hopper Capacity 7.8 yd³ (6 m³)
Discharge Conveyor Width 54" (137 cm)
Greenwaste Production 360 yd³/95 US tons (275 m³/86 metric tons) per hour
Scrap Board Production 425 yd³/65 US tons (325 m³/59 metric tons) per hour
