Eco Green Equipment - ECO Krumbuster® Cracker Mills

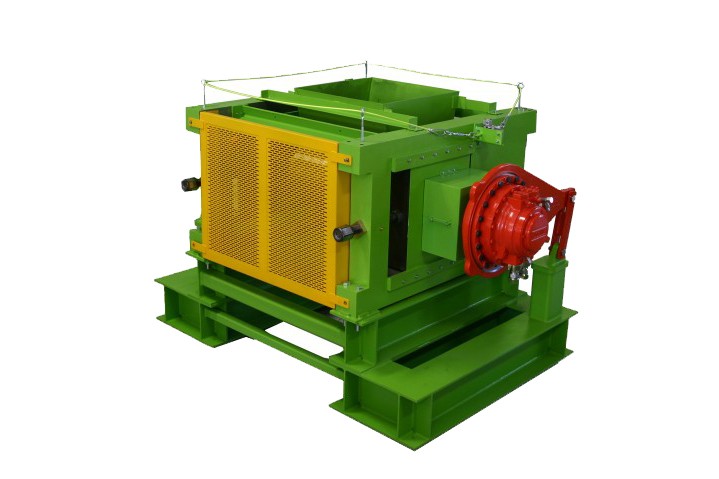

The ECO Krumbuster® includes a custom hydraulic power unit 225 kW (300 HP) that powers two Hagglunds hydraulic motors. This powerful combination provides years of worry free operation with minimal operating costs and maintenance. A 762 mm x 559 mm (30” x 22” inch) large roll combines with a 762 mm x 406 mm (30” x 16” inch) small roll to achieve the optimal nip and grinding power for clean crumb and rubber powder. Multiple roll corrugations are available.

The ECO Krumbuster® increases production capacity while eliminating over 50% of the weight of conventional mills. Fewer moving parts and long lasting double-row spherical steel bearings provide lower maintenance and less grease costs…improving your business’s bottom line.


Key Specifications
Input Material Wire-free chips smaller than 19 mm (0.75” inches)
Output Material Crumb Rubber and Rubber Powder from 6 mm (0.25” inch) down to 0.17 mm (177 Microns) depending on screening
Max Capacity Up to 3 metric TPH
Power 225 kW (300 HP)
ECO Krumbuster® Weight 5,500 kg (12,000 lb)
Hydraulic Power Unit (HPU) Weight 2,045 Kg (4,500 Ibs.)
