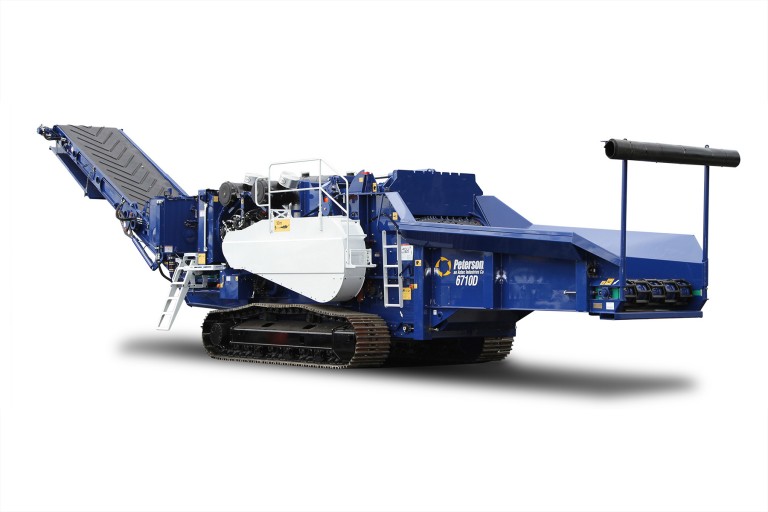

6710D Horizontal Grinders

The Peterson 6710D is Peterson’s largest horizontal grinder, and is designed for operations that need the most durable, highest output machine. Powered by a 1125hp (839 Kw) Tier II, Caterpillar C32 engine (or an optional Tier IVi Caterpillar C32 engine), the 6710D is designed for the toughest jobs. With a feed opening of 50 x 66 inches (127 x 168 cm), the 6710D can even process large stumps that used to be reserved for tub grinders! The grinder is particularly suited for land clearing operations or other applications where mobility is desired. Track mounting also reduces material handling costs in conventional recycling yards as well.


Key Specifications
Machine Weight 108,500 lbs (48.987 kg)
Horsepower C32 @ 1125 hp (839 kW) Tier II or Tier IVi CAT engine
Discharge Conveyor Width 60" (152 cm)
Total Grate Area 5253 in² (33890 cm²)
Hopper Capacity 9.9 yd³ (7.75 m³)
Feed Opening (width x height) 66" x 50” (168 x 127 cm)
