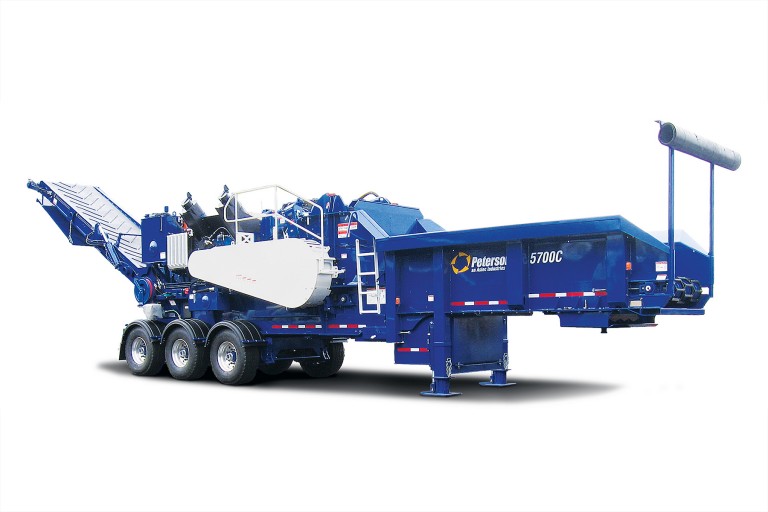

5700C Horizontal Grinders

Powered by a Caterpillar C27 engine making 1050 HP (772 kW), the Peterson 5700C horizontal grinder has the power to handle the toughest jobs. At 78,000 pounds (35 380 kg) the 5700C is designed for operations that require frequent moves between jobs without a special permit. With a feed opening of 60 x 40 inches (152 x 102 cm) combined with it’s high lift feed roll, the 5700C can readily reduce a wide range of material including stumps.


Key Specifications
Machine Weight 78,000 lbs (35 380 kg)
Horsepower C27 950 HP (698 kW) Tier II
Conveyor Speed 480, 580, or 680 ft/min (146, 177, or 207 m/min)
Total Grate Area 4060 in² (26 193 cm²)
Hopper Capacity 8.8 yd³ (6.7 m³)
Feed Opening (width x height) 60 x 40” (152 x 102 cm)
