4710B Horizontal Grinders

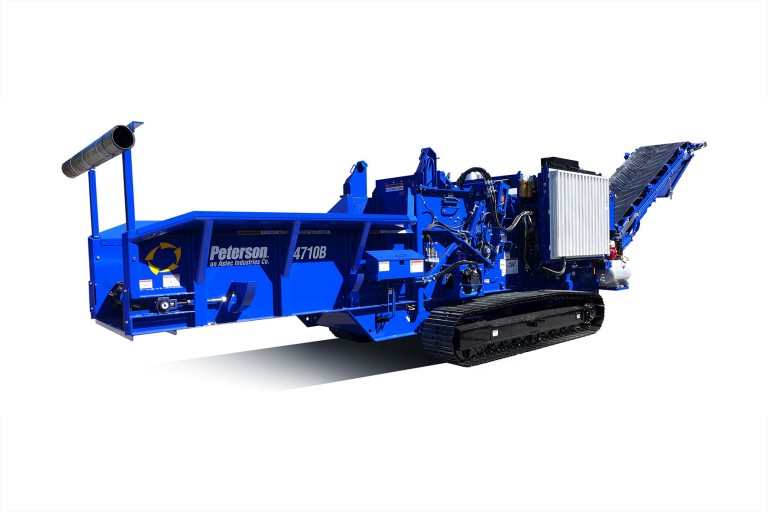

The 4710B is a track mounted horizontal grinder designed for high-volume producers with very demanding end-product specifications. Boasting 18 inches (45.7cm) of ground clearance—this model is particularly suited for land clearing operations or other applications where mobility and frequent moving is desired. Track mounting also reduces material handling costs in conventional recycling yards as well.

Specs

Key Specifications
Machine capacity 74,000 to 79,000 lbs (33 566 to 33 834 kg)
Horsepower 765 hp (570 kW) @ 2100 rpm
Discharge Conveyor Width 54” (137 cm)
Total Grate Area 4023 in² (25955 cm²)
Hopper Capacity 7.4 yd³ (5.7 m³)
Feed Opening (width x height) 60 x 37 1/2” (152 x 95 cm)
