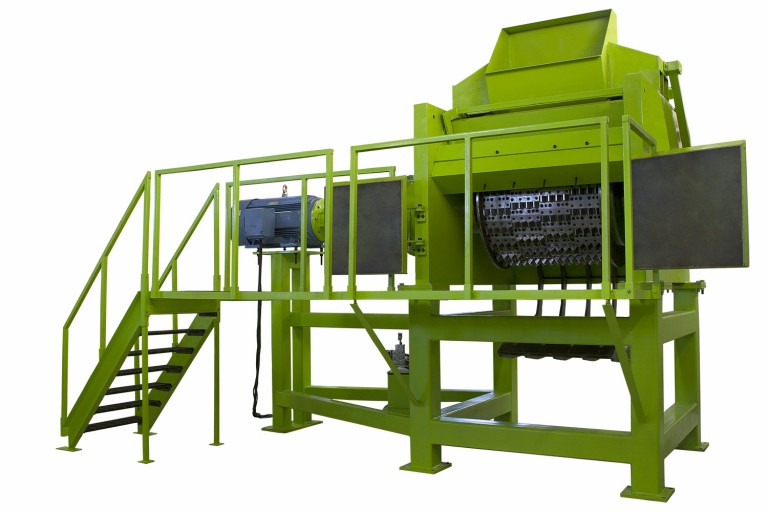

ECO Grater - Secondary Tire Shredder

Eco Green Equipment

star_border View Full Profile
Eco Green Equipment - ECO Grater - Secondary Tire Shredder Shredders

The ECO Grater series is the ultimate machine for mid-stream grinding and steel separation. The ECO Grater is designed to take pre-shredded tire chips and produce between 38-16 mm (1.50” – 0.625” inch) wire-free rubber chips or mulch.


Key Specifications
Power 187 kW (250 HP)
Weight 19,000 kg (41,800 lbs)
Max Capacity Up to 12 metric TPH
Equipment Dimensions L x W x H 5,260 x 3,040 x 3,884 mm (17’ x 10’ x 13’ feet)
Input Material Tire Shreds smaller than 150 mm (6” inches)
Output Material Up to 99% Wire-free rubber chips Liberated Steel
