TMB Series

Padding Bucket & Screening Bucket


TMB Series

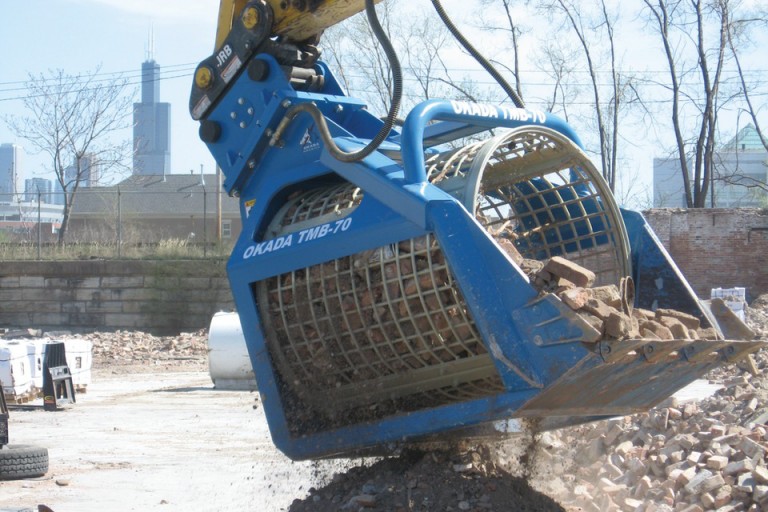

The Okada TMB, Padding Bucket & Screening Bucket, compact design and functional structural frame makes this attachment lightweight and easy to operate. A built-in control valve regulates flow and pressure to the TMB, eliminating the need for costly plumbing on the carrier excavator. A double-acting single pump flow kit used to run a thumb, crusher or shear is all that is needed to achieve two-way rotation. The in-body control valves allow the drum rotation speed to be fine-tuned for smooth operation in a variety of applications. The rotation drum consists of four bolt-on concave screens that are easily replaced, eliminating costly down time. An assortment of screen sizes from 3/8" (9 mm) to 4" (100 mm) are available, making the TMB suitable for a variety of screening processes. The TMB's large capacity makes it the most productive trommel bucket in its weight class.

View Profile

Specs

Key Specifications: 4 Models
Approx. operating weight 1325 - 6174 lbs.
Drum capacity 0.7 - 3.2 yd3
Carrier weight range 6-10 - 33-38 US tons
Screen diameter 32.7 - 55.1 inches
Screen length 37.4 - 63 inches
