Continental Biomass Industries, Inc.

5400BT

Portable Downswing Grinder


5400BT

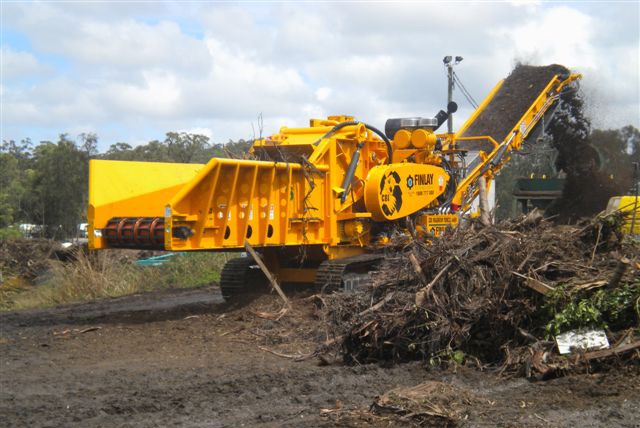

The CBI Magnum Force 5400B (TBG635) is a next-generation industrial grinder from CBI that allows owners to select from five different field-swappable rotors to accommodate changing materials and processing demands. This unique design provides the flexibility to process an exceptionally wide variety of materials and generate the products that your clients demand - all with a single machine. To further its unique design, the PT Tech hydraulic PTO and hydraulic engagement replaces the need for a clutch.

View Profile

Specs

Key Specifications
Engine Caterpillar C18; 765-HP (570 kW)
Weight 70,000 - 76,000 lbs. (approx.)
Discharge Conveyor Width 48” (1,219mm)
Discharge Conveyor Length 36’ (10,972mm)
Discharge Conveyor Height 15’ - 10” (4,826mm)
Infeed Width 48” (1,219mm)
Infeed Height 72” (1,828mm)
Infeed Conveyor 16’-0” (4,876mm)
