Superior Industries

Guardian®

Horizontal Screen

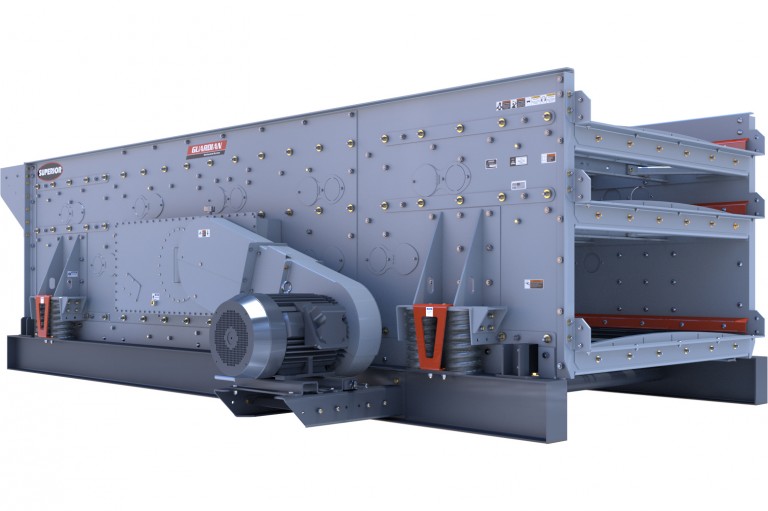

Superior’s patent-pending Guardian Horizontal Screen is a triple shaft horizontal screen that can be used in a portable plant application or as a stand-alone product in fixed plants. It is typically used in finer screening applications that are horizontal or not inclined more than 2.5 degrees. The Guardian Horizontal Screen provides you with a screen design that sizes and separates material more accurately and efficiently than an incline screen. Unique features include bottle jack lifting points for spring replacement, fully-enclosed belt guards with integrated tensioning systems, and hinged access doors on side plates to ease access.

VIEW PROFILE

Specs

Key Specifications
Max. Feed Size 10.0” (254mm)
Max. Top Deck Opening 5.0” (127mm)
Max. Feed Drop 18” (457mm)
Timing Angle 30˚ - 60˚
Side Plate Thickness 5/16” (7mm)
Reinforcing Plate Thick. 1/4” (6mm)
