Bateman Manufacturing - 4 Tine Magnet Grapple: 200 Series Orange Peel Grapples

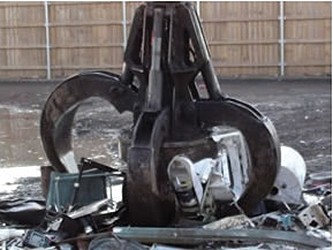

Bateman Magnet Grapples (Mag-Grabs) are purpose built to provide 100% handling efficiency for incoming and outgoing material, with the ferrous metal sorting capabilities of a magnet. The main body and tines are designed with great strength to survive tamping and packing loads and to withstand the extra load of the integrated magnet.

Bateman Mag-Grabs with new wide body design come equipped with internal hydraulic relief valves for jaw and cylinder protection. This grapple WILL stand up to your needs.

Specs

Key specifications
Working pressure 5000 PSI
Part No. BMG15-075-M30C 0.6 m³, 1792 kg
Part No. BMG2-125-M40C 0.86 m³, 2812 kg
Part No. BMG2-150-M40C 1.2 m³, 3402 kg
Part No. BMG2-150-M44C 1.2 m³, 3810 kg
Part No. BMG2-150-M50C 1.2 m³, 4082 kg
Part No. BMG2-200-M44C 1.5 m³, 3901 kg
Part No. BMG2-200-M50C 1.5 m³, 4173 kg

Company Info

5 Winstar Rd.
Oro-Medonte, ON
CA, L0L 2L0
